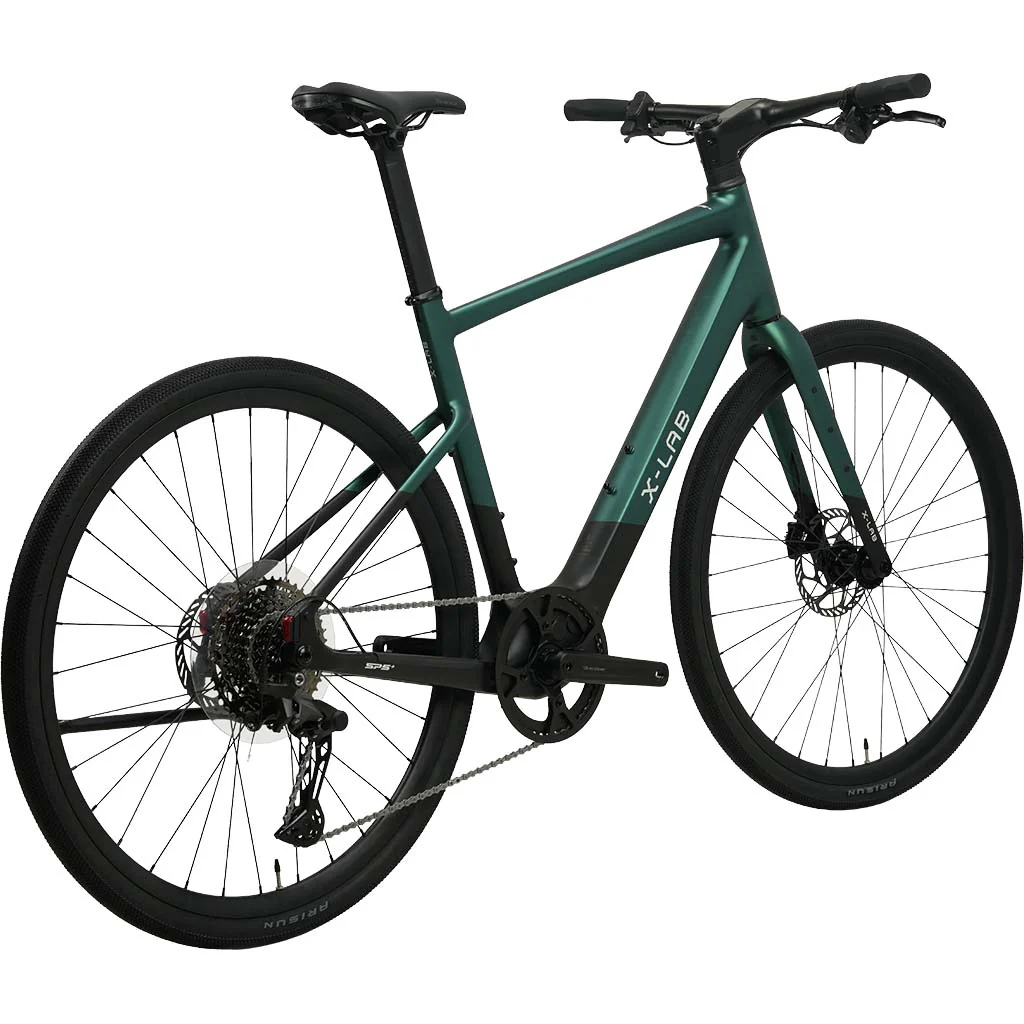

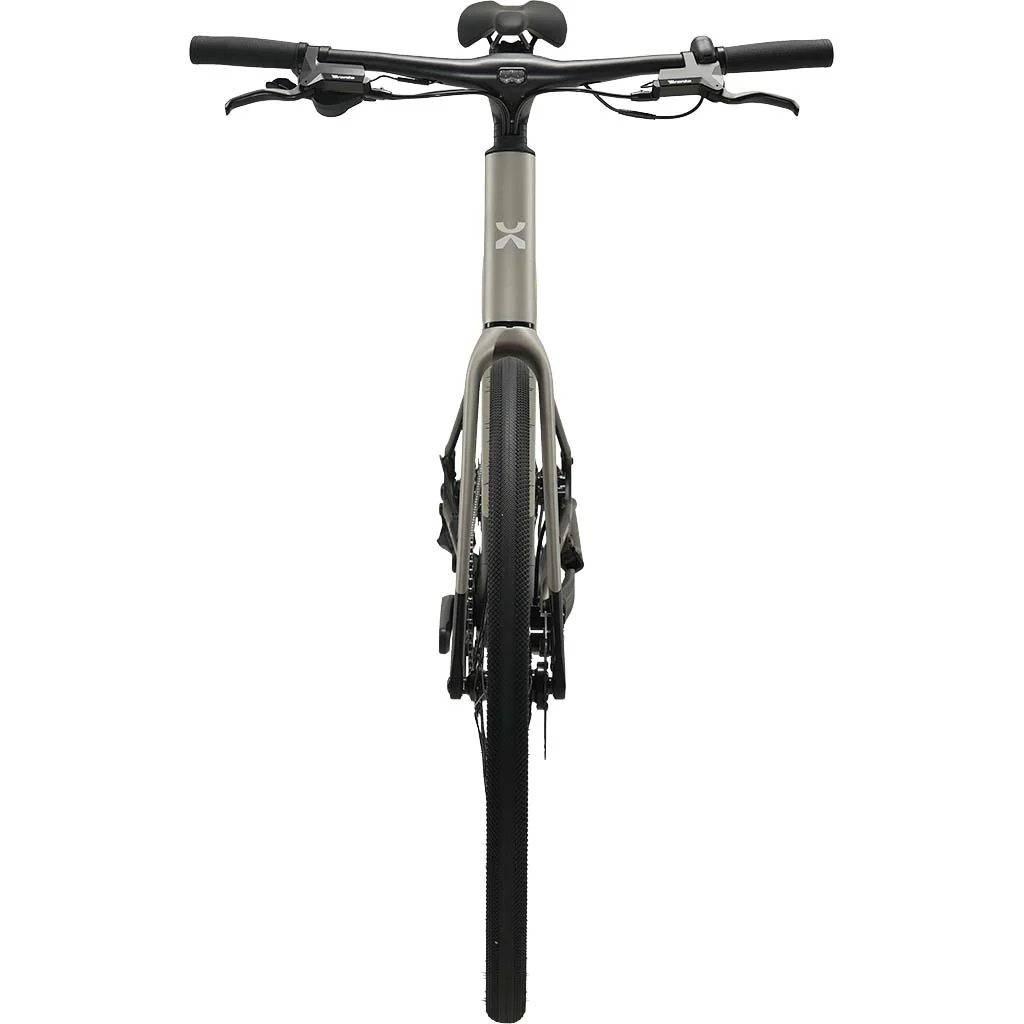

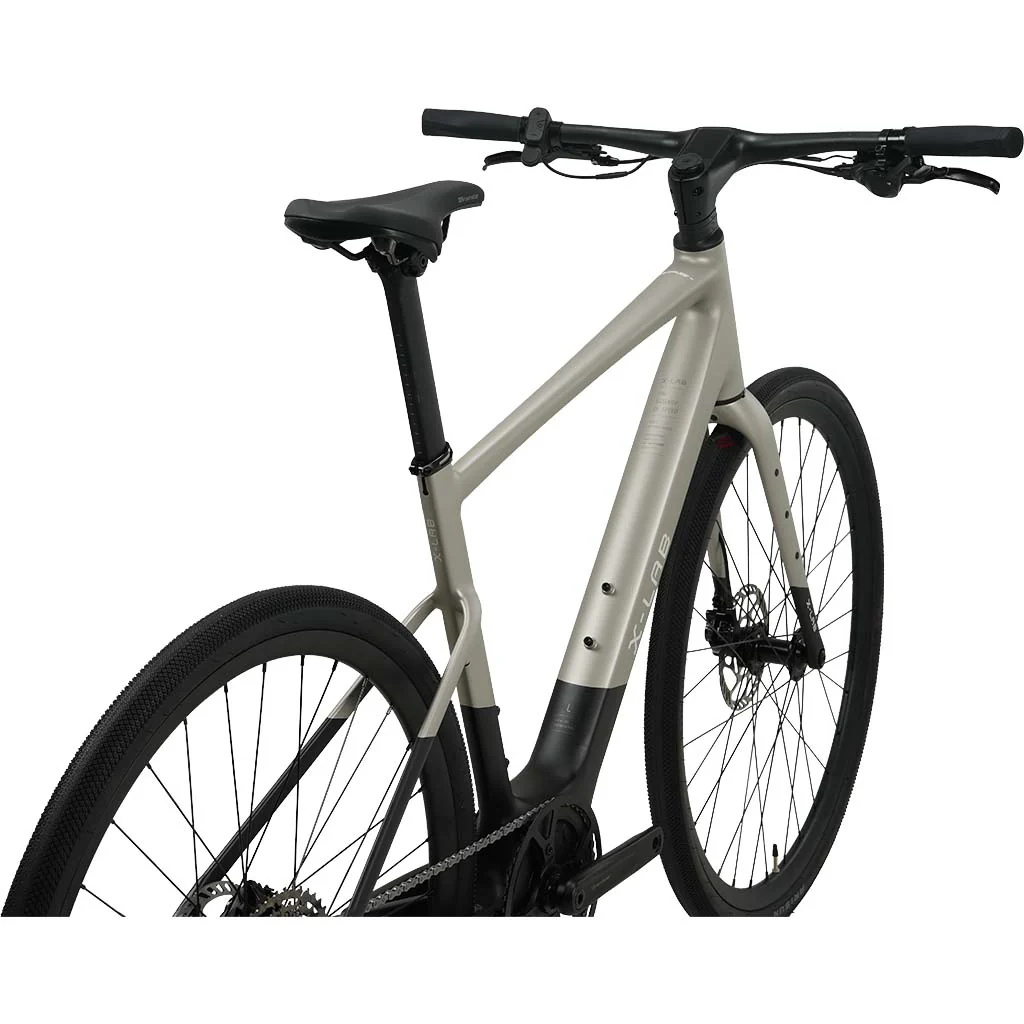

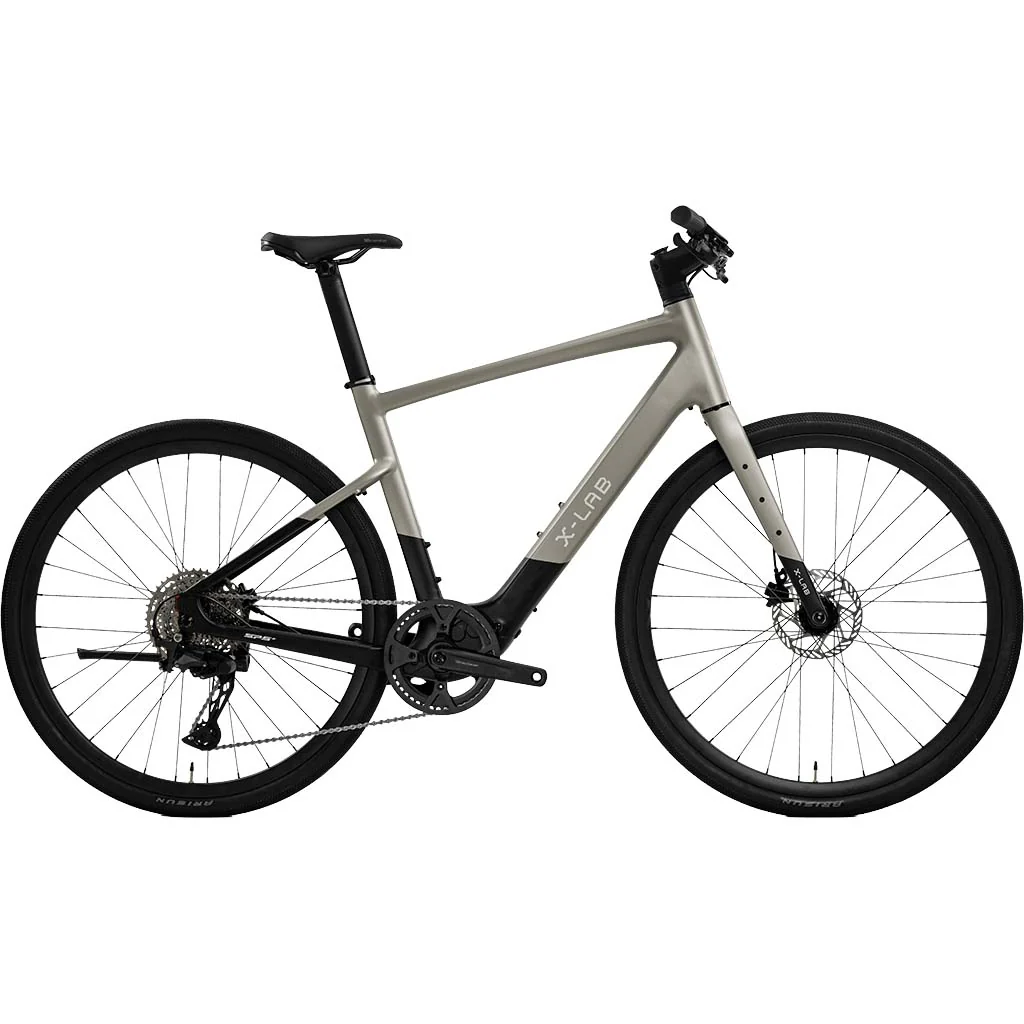

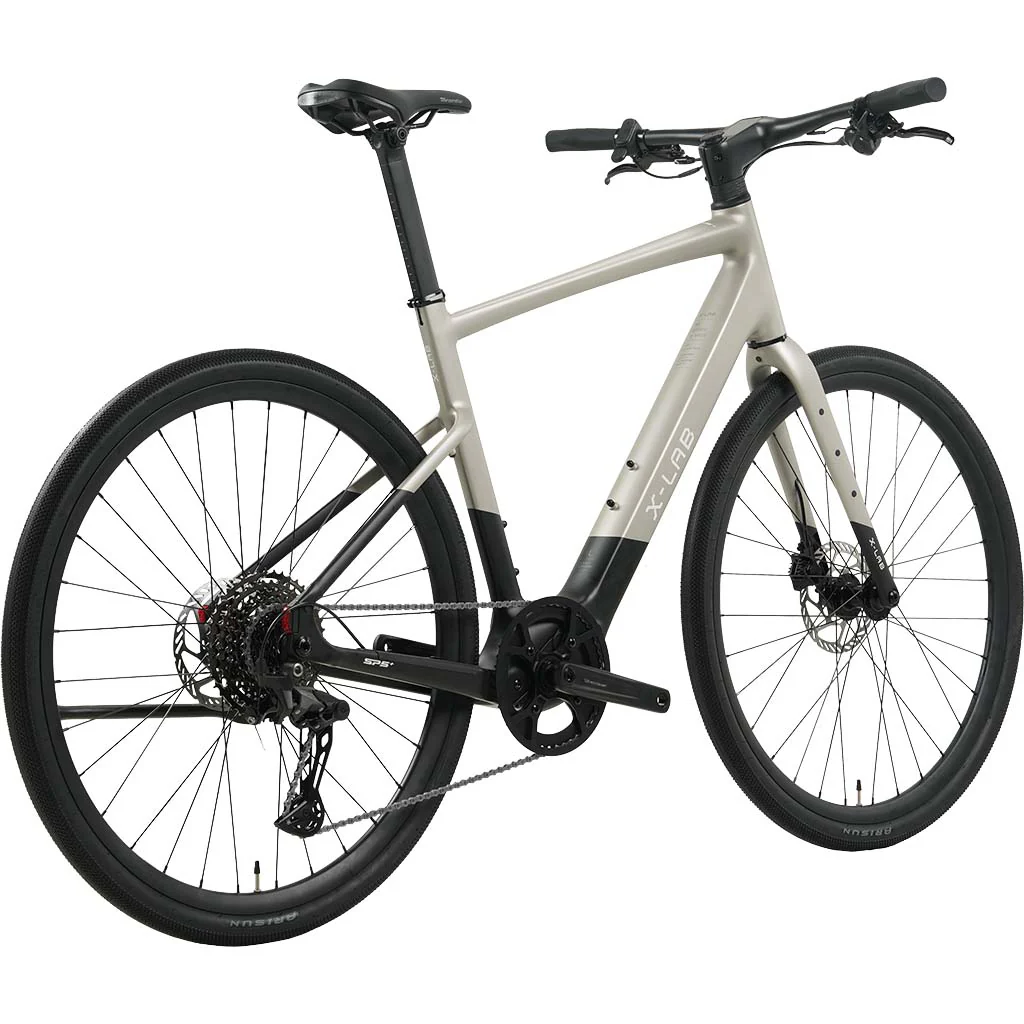

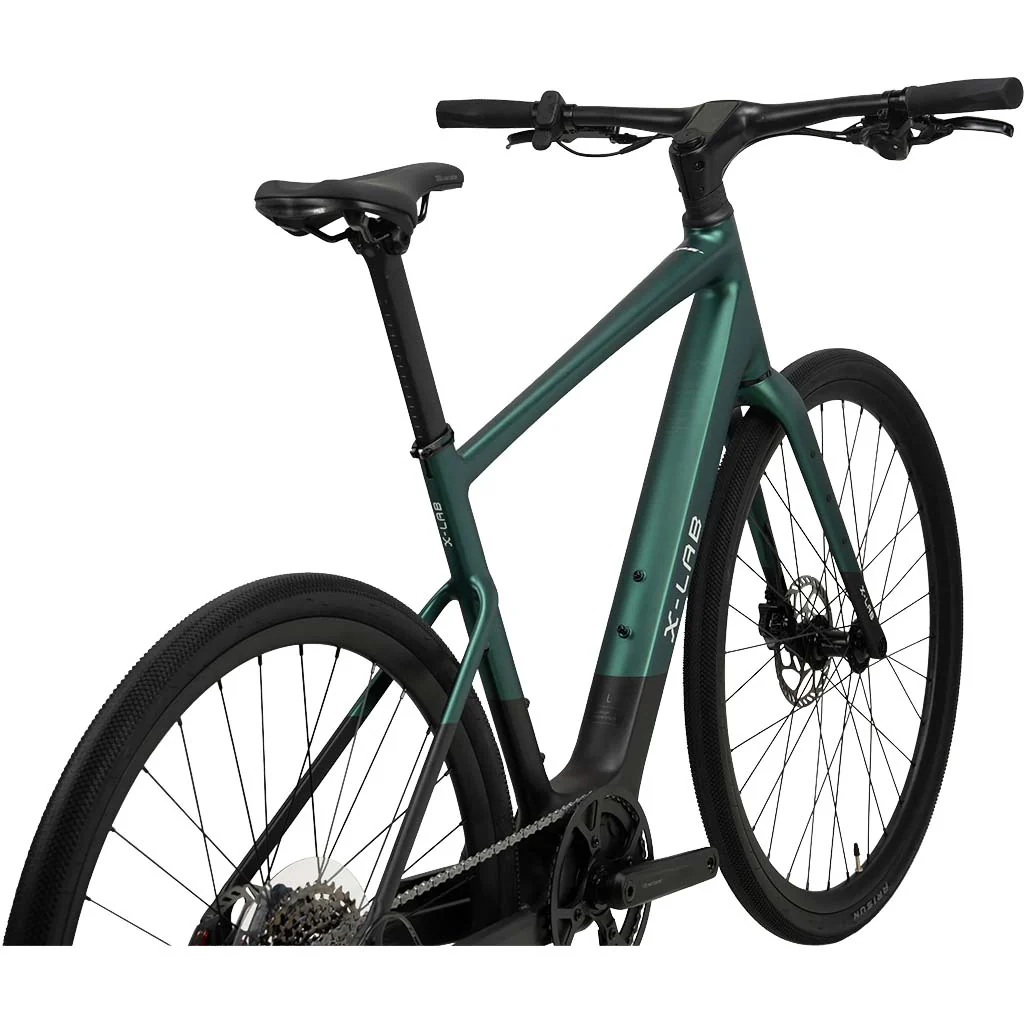

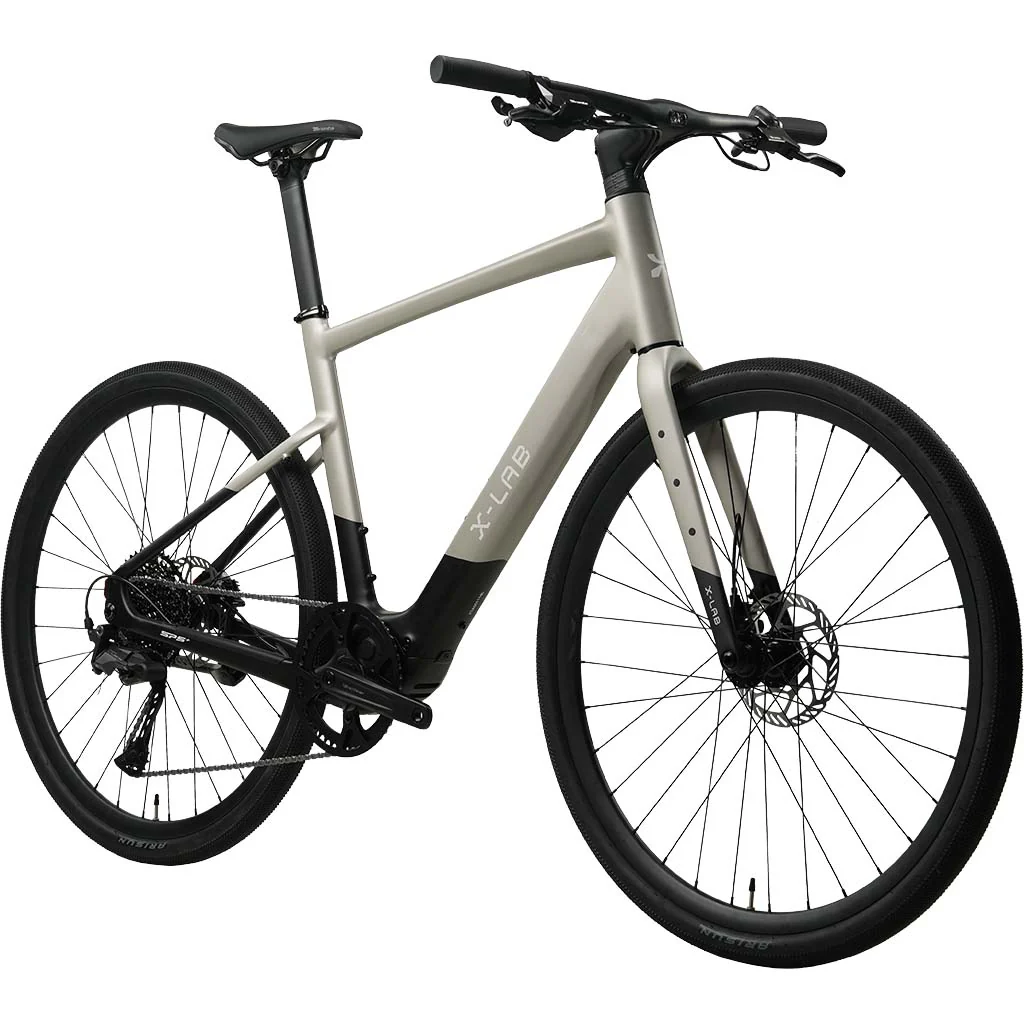

SP5+

The X-LAB SP5+ is built to make electric cycling simple, smooth, and accessible. Its lightweight frame and intuitive electric assist provide effortless acceleration and reliable range, helping riders cover distances with ease. A balanced geometry and durable construction ensure stability and comfort whether you're commuting, exploring your neighborhood, or enjoying weekend rides. The SP5+ proves that electric mobility can be both practical and fun, with an element of fitness built in.

• Suggested Use
  • City/Bike Path, Commuting
• Frame
  • XDS X6 Alloy Frame, UDH Compatible
• Fork
  • XDS Carbon Fork, 100x12mm Thru-axle
• Motor
  • XDS Mid-drive X800 Motor, 250 Watt Continuous Rated Power, 400 Watt Peak Power, 85Nm Peak Torque, Dual-sided Torque Sensor
• Battery
  • XDS Rechargeable Li-ion Battery, 339Wh, LG Battery Cells, 3A Charger (0-100% 3hr 15min)
• Handlebars
  • Branta Alloy Integrated, w/ Display & Front Light, 680mm width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep
• Brakes
  • Branta EC215D Hydraulic E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever, 2 Piston Caliper
• Rear Derailleur
  • Shimano Cues RD-U4000, 9-Speed
• Shift Levers
  • Shimano Cues 9-Speed
• Crankset
  • Branta Alloy Crankset, 46T, Narrow-wide Teeth
• Chain
  • KMC E-GLIDE-S
• Cassette
  • Shimano CS-LG300 11-46T, 9-Speed
• Wheels
  • Branta Alloy E-Bike Wheelset
• Tires
  • Branta R240, 700x40C, 30TPI
    • Max Tire Clearance: 45C w/ Full-Wrapped Fender
• Saddle
  • Branta SRX+
• Seatpost
  • XDS Alloy Seatpost, Aero Shape, 350mm Length
• Extras
  • Quad Lock Mount
  • Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates
  • UL2271 and UL2849 Certified, Ingress Ratings: Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6
  • Ride up to 50 miles on a Single Charge
  • Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)
  • Integrated F+R Lights (+ Brake Lights)
• Weight
  • 16.79 kg / 37.01 lbs (Size L)
